Koord: Language Design and Overview

Ritwika Ghosh

University of Illinois at Urbana-Champaign

Motivation

Application programs for monitoring and control physical processes.
Platform specific programming models and languages for these systems.
Koord : a new programming model and language for CPS .
Platform-independent decision
and coordination tasks separated from platform-dependent low-level sensing, communication, and control.

The overall Koord system

System consists of three planes :
- program
- control,
- plant
Program Plane : Koord Program in runtime system.
Plant plane : hardware platforms of the participating agents.
Control plane : actuator ports , hardware-dependent decisions , sensor ports.

Koord application

Overall system : Koord program + controller.
Program :
- reads sensor ports
- reads and writes to program variables
- sets actuator ports

in zero Logical Time (?)

Controller :
- reads actuator ports
- drives physical plant for a δ time
- writes to sensor ports.

Application Environment

Application environment : controller + plant
A black-box function:
- Input : actuator port values
- Output : sensor ports values

over a δ time interval.

Koord Program

Koord : event-based language for distributed system of agents.
An agent’s program : events
Events : preconditions + effects
Interaction with the environment : sensor and actuator ports.
Runtime system executes at most one event every δ time units.

An Illustrative example

Waypoint(i)

using Motion actuator target sensor pos, status

local
    Bool pick = true
    Position currentDest
    List<Position> dests =
         [(200,10,0);(100,100,0);(50,200;0)]

PickDest:
    pre pick
    eff if (¬ isEmpty(dests))
            currentDest = head(dests)
            Motion.target = currentDest
            pick = false


Remove:
	pre ¬ pick
	eff if(Motion.status == done)
                remove(dests,currentDest)
		pick = true

waypoints

Another Illustrative example

Lineform(i)

using Motion actuator target sensor pos, status

import lineform.decls

Update:
    eff x[pid] = Motion.pos
        if ¬ (pid == 1 or pid == 5)
        Motion.target = (x[pid + 1 ] + x[pid − 1 ])/2]]]




lineform.decls

allwrite:


allread:
    int x

lineform

Shared Variables

```
allwrite: Multi-writer, multi-reader.
```

allread(w) : Single-writer, multi - reader.

```
allread(*) : declared for all agents.
```

Language Semantics

Rewriting Based Semantics

Interpreter for language follows its operational semantics in principle.
In practice : gap between the formal operational semantics of the language and its implementation.
Said gap is eliminated : semantic definition of a language actually is its interpreter.
Execute the language definition on standard existing context-insensitive term rewrite engines
Our choice : K semantic framework .

Semantics Overview

Set of agent programs interacting with their environment.
System semantics : nondeterministic, timed automaton in terms of configurations.
Configurations : individual agent state + pertinent global information.
State evolution :
- Program transitions : agent program events executing
- Environment transitions : δ amount of time elapsing

K Semantic Framework

Language syntax defined using conventional BNF.
Semantics is given as a transition system : rewrite rules over configurations.
For Koord , configuration = code and + program state (all agents) + state of the physical environment.
Inherent support for non-determinism.

Also, Formal Systems Laboratory, UIUC.

System Configuration

C : Set of Agent Configs

Global Context

Global Time

Evolution type

C = \{C_i \mid i \in \mathit{ID}\}

C = \{C_i \mid i \in \mathit{ID}\}

\tau \in \mathbb{R}^+

\tau \in \mathbb{R}^+

S: \mathit{Var}\mapsto\mathit{Val}

S: \mathit{Var}\mapsto\mathit{Val}

\mathit{turn}\in \{\mathtt{prog,env}\}

\mathit{turn}\in \{\mathtt{prog,env}\}

C_\delta

C_\delta

Initial State

Pre-processing : Initial Configuration.
Copies of Global context are created in agents.
Function library to populate input.
Current assumption : Concrete Initial state.

Initializing...

Waypoints to be visited

Initial values of program variables

Create local copies of shared variables

Agent Configuration

Program Code

Local Context

Write permissions

Controller Port Map

En , Ur

Evolution type

A high level description of event semantics

Allowed three types of events:
- enabled
- disabled
- urgent
Non-determinism :
- event execution order
- enabled event executed or not.

pre  urgent (a == b)

An Illustrative example

The statement level semantics are given by rewrite rules of type :

Control flow rules :

Statement sequencing

Statement processing

\rightarrow_S\ \subseteq (\mathbb{S} \times \mathbb{C}_{i\in\mathit{ID}}\times \mathbb{S}\mathit{tmt}) \times \mathscr{P}(\mathbb{S}\times \mathbb{C}_{i\in \mathit{ID}}\times \mathbb{S}\mathit{tmt})

\rightarrow_S\ \subseteq (\mathbb{S} \times \mathbb{C}_{i\in\mathit{ID}}\times \mathbb{S}\mathit{tmt}) \times \mathscr{P}(\mathbb{S}\times \mathbb{C}_{i\in \mathit{ID}}\times \mathbb{S}\mathit{tmt})

For every syntactic construct

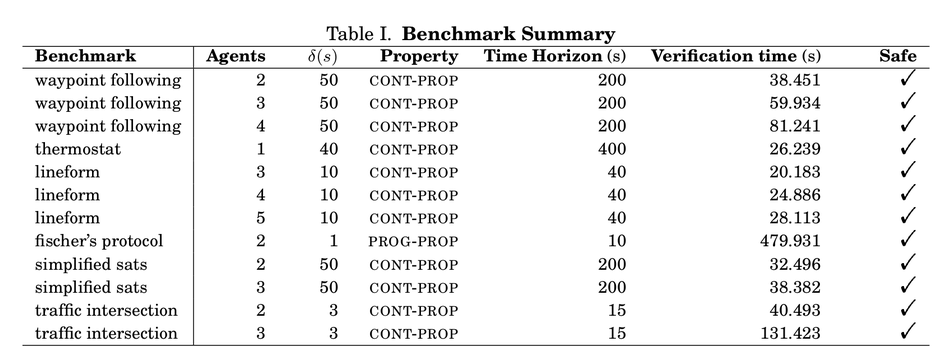

Formal analysis and verification

Explicit state bounded model checking
Combining K rewriting system with a sensitivity analysis approach.
Compute the reachable set of each program , check invariants.

q_0

q_0

environment transition

program transition

Non determinism in program transitions : State space expands.
Assume deterministic environment transition : Blackbox execution of internal states.

Executable

Semantics

Property

Program

discrete set of reachable states

Traces of sensor readings

K framework

BlackBox

Safe/Unsafe

BMC

DryVR

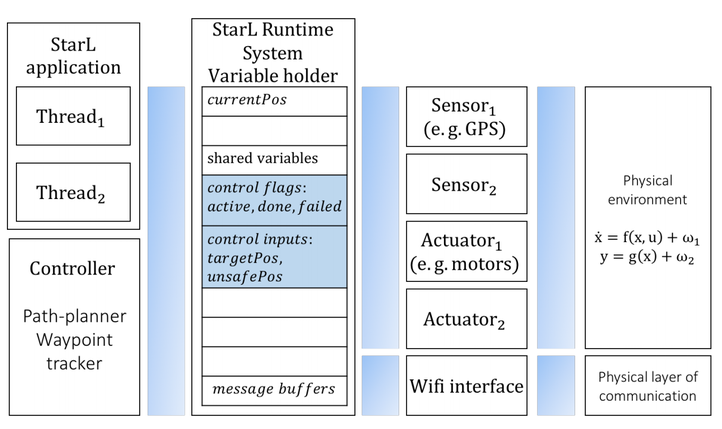

Connecting to the StarL framework and Physical Platforms

Koord

Application

Parser

Included in model, but now iRL.

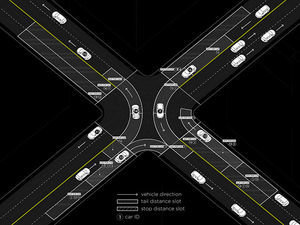

Traffic application in Koord

Traffic(i)

using Motion actuator target sensor pos, status

import traffic.decls

local
Position next
List<Int> required

Ready:
    pre stage == pick
    eff required = getRequired(next)
        for j in required enqueue(request[j ],pid)
        stage = entry


Enter:
    pre stage == entry
    eff if for j in required head(request[j ]) = pid
        Motion.target = next
        stage = cs

Traverse:
    pre stage == cs
    eff if (Motion.status == done)
            for j in required
            dequeue(request[j ],pid)

~ 450 lines in Java, using StarL, which still provides a huge number of abstractions.

From theory to implementation

Implement shared memory through message passing.
Make assumptions come true : absolute positioning, number of agents in system.
Modular and reusable interfaces (Nontrivial!)

To summarize

Event driven language for coordination and control,
Formal executable semantics.
Debugging approach for programming applications
Step forward to help users without programming expertise in controller theory, robotics motion control, or network protocols
Safely program distributed applications interacting with physical world.

What next?

Ensure faithful implementation with hardware platforms.
Sophisticated debugger with error considerations.
Pushing verification , synthesis .
More and diverse applications.
